Magnetizing Yokes, Magnetizing Coils / We sell about 1,000 magnetic yokes and coils per year.

Recently in the motor industry, the decreasing the Cogging Torque, noise (vibration), and lost current, is required as the miniaturization, high-performance, and energy-saving abilities increase.
We design and manufacture "magnetizing yokes" to fulfill the "motor characteristics," which every customer desires, with our motor designing experience.
Having received a lot of inquiries about our magnetizing yokes, we have contributed to decreasing the Cogging Torque and noise.

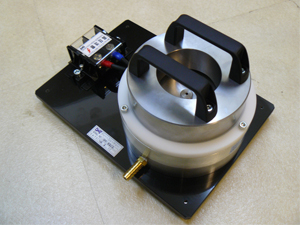

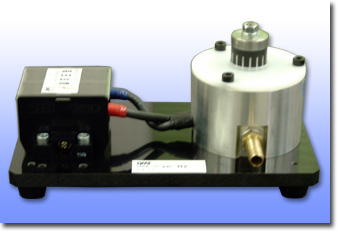

Magnetizing Yoke Internal circumference 16 poles (SIN ripple)

Magnetizing Yoke Internal circumference 16 poles (SIN ripple)

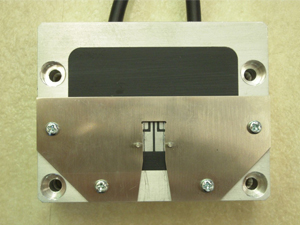

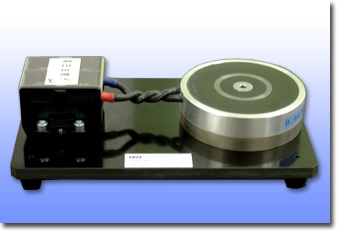

Magnetizing Yoke FG180poles
(0.5 pitch)

Magnetizing Yoke FG180poles (0.5 pitch)

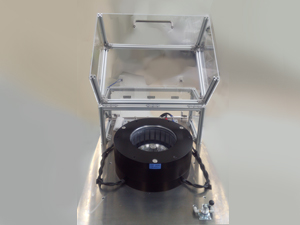

Magnetizing Yoke External circumference 16 poles

Magnetizing Yoke External circumference 16 poles

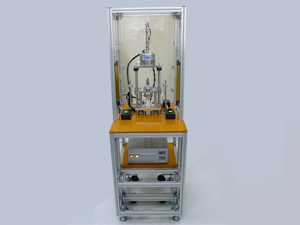

Magnetizing Yoke Internal circumference 12 poles (SIN ripple)

Magnetizing Yoke Internal circumference 12 poles (SIN ripple)

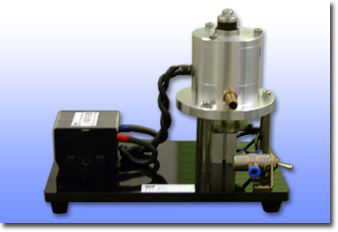

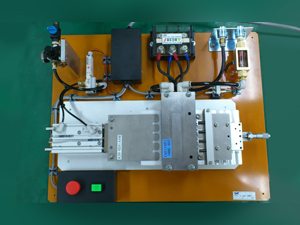

Magnetizing Yoke Pierced 4 poles vertically (Automatic system)

Magnetizing Yoke Pierced 4 poles vertically (Automatic system)

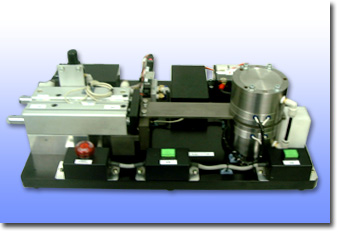

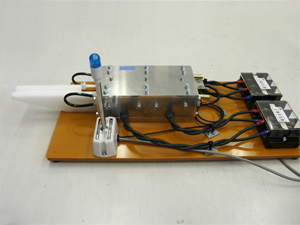

Magnetizing Yoke Pierced 12 poles vertically (automatic system)

Magnetizing Yoke Pierced 12 poles vertically (automatic system)

Delivery record

実績
実績
実績
実績
実績
実績
実績
実績
実績
実績
実績
実績
実績
実績
< Our policy for pursuing accuracy and quality control >
Our policy for pursuing accuracy and quality control
Our policy for pursuing accuracy and quality control

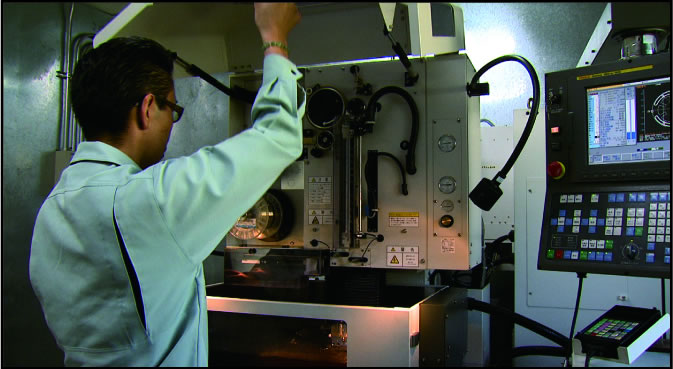

We conduct wire electric discharge machining in our factory (in operation 24 hours)
Since we process it by ourselves, we can process iron cores, which are required for magnetizing experiments, quickly and casually. Also, we can gain "progress in magnetizing skills" and "an accumulation of knowledge."

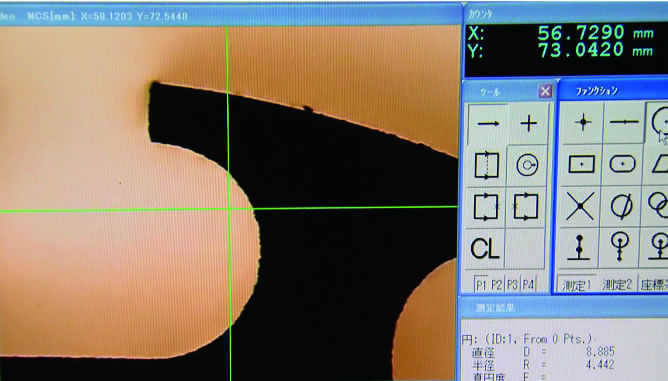

We also pursue a stability in the quality of the detailed size after the processing by measuring and controlling the data by the latest picture measuring instruments.
< Before shipping >
当社では着磁電流を4μsec ごとに計測できる【インパルスメーター IPM-501】を使用し、ピーク電流・通電時間・電流面積の通電試験を行っています。

Magnetic Viewers

We sell magnetic viewers.
Magnetic Viewers
Magnetic Viewers

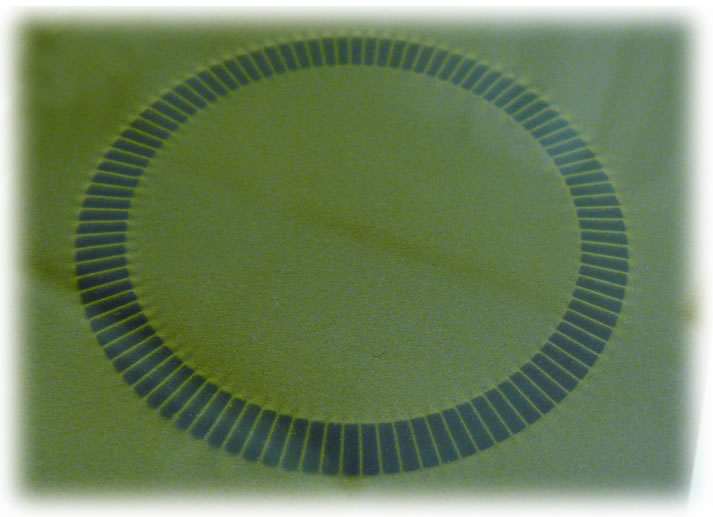

A sheet to check the boundary line between the N pole and the S pole (Yellow Type)
Size: 350mm × 200mm
*The specification and the exterior might be changed without notice.
