Measurement Related Devices / High accuracy and functionality

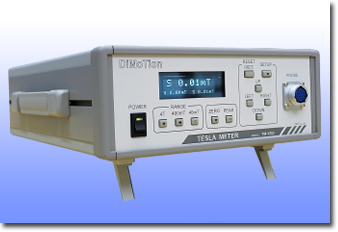

Tesla Meter/Gauss Meter TM-4702

Tesla Meter TM-4702 can measure magnetic flux density (DC) such as magnets and magnetic flux density (AC) such as transformer at high accuracy in the range of 0.01mT to 4.0 T.
Auto zero function (automatic calibration) RS - 232C is included as standard equipment.
This Tesla Meter also includes various practical functions such as a comparator function and a peak hold function.

テスラメーター／ガウスメーター　TM-4702

Features

  • Peak hold function
  • Comparator function
  • Auto zero function
  • Minimum resolution 0.01ｍＴ (0.1Ｇ)
  • Accuracy ± 0.4%/Measurement range full scale
  • High accuracy/Low noise (Dynamic range 90 dB)
  • Frequency characteristic DC-5KHz
  • Equipped as standard with RS-232C (USB compatible)

Probe

  • Flat type FC-150 (1.5mm width × 1.2mm thickness)
    ・FC-1506 (width 1.5mm × thickness 0.6mm)
    ・FC-300 (width 3.0mm × thickness 1.8mm)
    ・FC-075 (Ultra-fine width 0.6 mm × thickness 0.28 mm world's smallest size)
    ・FC-075L FC-075L (Front end of FC-075/50mm long type)
  • Shaft type
    ・AC-156 (φ6 type)
    ・AC-153 (φ3 type)

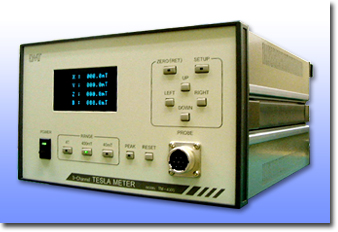

3-axis Tesla meter / Gauss meter TM-4300

3-axis Tesla meter / Gauss meter TM-4300

3-axis Tesla meter / Gauss meter TM-4300

  • This is a Tesla / Gauss meter, which can measure magnetic-flux in the direction of X, Y, and Z axes.
  • A function to display the angle of the vector magnetic-flux
  • Peak Holding function
  • Automatic Zero function
  • The minimum resolution is 0.01mT(0.1G)
  • RS-232C is equipped. (it can correspond to USB)

Probe

  • The exclusive probe
    3DP-1315 (The world's smallest size : width 1.3mm × thick 1.5mm × length 35mm)

Flux meter Discontinued

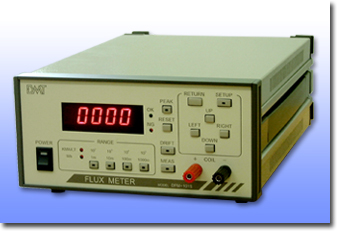

DFM-101S

In the flux meter, DFM-101S, we decreased the drifts to extremes by using a highyl accurate integrating circuit. It can measure from 1 μWb to 1,000 mWb. This is a practical and multiple function flux meter with a built-in comparator and peak holding function.
DFM-101S

Features

  • The measurement ranges are; 1mWb・10mWb・100mWb・1000mWb
  • The units (Wb or MAX.Turns) can be switched.
  • The minimum resolution is 1 μWb
  • Various peak holding functions (P・P、ABS、N、S)
  • Buit-in comparator
  • Super stable drift
  • Automatic Zero function
  • External control is possible
  • RS-232C is equipped (It can correspond to USB)

Impulse meter (magnetizing ammeter) IPM-501 Discontinued

Many existing magnetizing ammeters measure only the peak value when measuring the magnetizing current. But the IPM-501 can measure the peak value, the area size, and weld time in every 4 μseconds.
Q: Does the magnetic characteristic change according to the magnetizing power supply? Does the life of the magnetizing yoke become shorter?
A: Yes, it does. It is because the ripple of the magnetizing current by the magnetizing power supply is different.

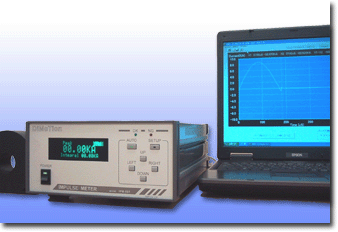

Impulse meter (magnetizing ammeter) IPM-501

Features

  • This can measure the peak value of the magnetizing power supply and the area of the magnetizing current. (patented)
  • The sampling speed is 4μseconds.
  • Ultra high-accuracy
  • This is equipped with a USB port and serial port.
  • Built-in comparator
  • Various analysis with the exclusive software
  • This can check and measure the dispersion of the magnetizing power supply and multiple outputs.
*The specification and the exterior might be changed without notice.
